使用Rust编写内核程序

字数统计: 1.2k字   |   阅读时长: 6分

Rust支持系统编程，可以编写内核程序，本次实验是使用Rust编写内核程序，在裸机上运行并打印一个爱心。

项目结构：

1
2
3
4
5
6
7
8
9
10
11
.
├── build.rs
├── Cargo.lock
├── Cargo.toml
├── kernel
│   ├── Cargo.toml
│   └── src
│       └── main.rs
├── rust-toolchain.toml
├── src
│   └── main.rs

build.rs是一个构建脚本，用于生成镜像文件，代码如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
use std::path::PathBuf;

fn main() {
    // set by cargo, build scripts should use this directory for output files
    let out_dir = PathBuf::from(std::env::var_os("OUT_DIR").unwrap());
    // set by cargo's artifact dependency feature, see
    // https://doc.rust-lang.org/nightly/cargo/reference/unstable.html#artifact-dependencies
    let kernel = PathBuf::from(std::env::var_os("CARGO_BIN_FILE_KERNEL_kernel").unwrap());

    // create an UEFI disk image (optional)
    let uefi_path = out_dir.join("uefi.img");
    bootloader::UefiBoot::new(&kernel)
        .create_disk_image(&uefi_path)
        .unwrap();

    // create a BIOS disk image
    let bios_path = out_dir.join("bios.img");
    bootloader::BiosBoot::new(&kernel)
        .create_disk_image(&bios_path)
        .unwrap();

    // pass the disk image paths as env variables to the
    println!("cargo:rustc-env=UEFI_PATH={}", uefi_path.display());
    println!("cargo:rustc-env=BIOS_PATH={}", bios_path.display());
}

Cargo.toml文件如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[workspace]
resolver = "3"
members = ["kernel"]

[package]
name = "test_bootloader"
version = "0.1.0"
edition = "2024"

[dependencies]
ovmf-prebuilt = "0.2.5"

[build-dependencies]
kernel = { path = "kernel", artifact = "bin", target = "x86_64-unknown-none" }
bootloader = "0.11.13"

在rust-toolchain.toml中配置编译器的版本，如下：

1
2
3
[toolchain]
channel = "nightly"
targets = ["x86_64-unknown-none"]

src\main.rs是一个测试程序，用于启动qemu虚拟机，所以你可能需要安装qemu。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
use ovmf_prebuilt::{Arch, FileType, Prebuilt, Source};
use std::env;
use std::process::{Command, exit};

fn main() {
    // read env variables that were set in build script
    let uefi_path = env!("UEFI_PATH");
    let bios_path = env!("BIOS_PATH");

    // parse mode from CLI
    let args: Vec<String> = env::args().collect();
    let prog = &args[0];

    // choose whether to start the UEFI or BIOS image
    let uefi = match args.get(1).map(|s| s.to_lowercase()) {
        Some(ref s) if s == "uefi" => true,
        Some(ref s) if s == "bios" => false,
        Some(ref s) if s == "-h" || s == "--help" => {
            println!("Usage: {prog} [uefi|bios]");
            println!("  uefi  - boot using OVMF (UEFI)");
            println!("  bios  - boot using legacy BIOS");
            exit(0);
        }
        _ => {
            eprintln!("Usage: {prog} [uefi|bios]");
            exit(1);
        }
    };

    let mut cmd = Command::new("qemu-system-x86_64");
    // print serial output to the shell
    cmd.arg("-serial").arg("mon:stdio");
    // don't display video output
    cmd.arg("-display").arg("gtk");
    // enable the guest to exit qemu
    cmd.arg("-device")
        .arg("isa-debug-exit,iobase=0xf4,iosize=0x04");

    if uefi {
        let prebuilt =
            Prebuilt::fetch(Source::LATEST, "target/ovmf").expect("failed to update prebuilt");

        let code = prebuilt.get_file(Arch::X64, FileType::Code);
        let vars = prebuilt.get_file(Arch::X64, FileType::Vars);

        cmd.arg("-drive")
            .arg(format!("format=raw,file={uefi_path}"));
        cmd.arg("-drive").arg(format!(
            "if=pflash,format=raw,unit=0,file={},readonly=on",
            code.display()
        ));
        // copy vars and enable rw instead of snapshot if you want to store data (e.g. enroll secure boot keys)
        cmd.arg("-drive").arg(format!(
            "if=pflash,format=raw,unit=1,file={},snapshot=on",
            vars.display()
        ));
    } else {
        cmd.arg("-drive")
            .arg(format!("format=raw,file={bios_path}"));
    }

    let mut child = cmd.spawn().expect("failed to start qemu-system-x86_64");
    let status = child.wait().expect("failed to wait on qemu");
    match status.code().unwrap_or(1) {
        0x10 => 0,  // success
        0x11 => 1,  // failure
        _    => 2,  // unknown fault
    };
}

kernel\Cargo.toml文件如下：

1
2
3
4
5
6
7
8
9
[package]
name = "kernel"
version = "0.1.0"
edition = "2024"

[dependencies]
bootloader_api = "0.11.13"
uart_16550 = "0.4.0"
x86_64 = "0.15.4"

kernel\src\main.rs文件是内核程序，当加载引导程序后，会调用kernel_main函数，我们在kernel_main函数中向屏幕中画一个爱心的图像：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
#![no_std]
#![no_main]

use bootloader_api::{BootInfo, entry_point};
use bootloader_api::info::{FrameBuffer, FrameBufferInfo};
use core::fmt::Write;

#[derive(Debug, Clone, Copy, PartialEq, Eq)]
#[repr(u32)]
pub enum QemuExitCode {
    Success = 0x10,
    Failed = 0x11,
}

pub fn exit_qemu(exit_code: QemuExitCode) -> ! {
    use x86_64::instructions::{nop, port::Port};

    unsafe {
        let mut port = Port::new(0xf4);
        port.write(exit_code as u32);
    }

    loop {
        nop();
    }
}

pub fn serial(port: u16) -> uart_16550::SerialPort {
    let mut port = unsafe { uart_16550::SerialPort::new(port) };
    port.init();
    port
}

entry_point!(kernel_main);

fn kernel_main(boot_info: &'static mut BootInfo) -> ! {
    let mut port = serial(0x3F8);
    writeln!(port, "\n=(^.^)= Hello,world!\n").unwrap();

    let framebuffer = boot_info.framebuffer.as_mut().unwrap();
    draw_heart(framebuffer);

    loop {}
}


fn draw_heart(fb: &mut FrameBuffer) {
    let info = fb.info();

    let cx = info.width as f32 / 2.0;
    let cy = info.height as f32 / 2.0;
    let size = core::cmp::min(info.width, info.height) as f32 / 3.0;

    fb.buffer_mut().fill(0);
    for py in 0..info.height {
        for px in 0..info.width {
            let x = (px as f32 - cx) / size;
            let y = (cy - py as f32) / size;
            let eq = (x * x + y * y - 1.0) * (x * x + y * y - 1.0) * (x * x + y * y - 1.0) - x * x * y * y * y;
            if eq <= 0.0 {
                unsafe { put_pixel(fb, info, px, py, 255, 0, 0) };
            }
        }
    }
}


#[inline(always)]
unsafe fn put_pixel(fb: &mut FrameBuffer, info: FrameBufferInfo, x: usize, y: usize, r: u8, g: u8, b: u8) {
    let offset = (y * info.stride + x) * info.bytes_per_pixel;
    fb.buffer_mut()[offset] = b;
    fb.buffer_mut()[offset + 1] = g;
    fb.buffer_mut()[offset + 2] = r;
}

#[panic_handler]
#[cfg(not(test))]
fn panic(info: &core::panic::PanicInfo) -> ! {
    let _ = writeln!(serial(0x3F8), "PANIC: {info}");
    exit_qemu(QemuExitCode::Failed);
}

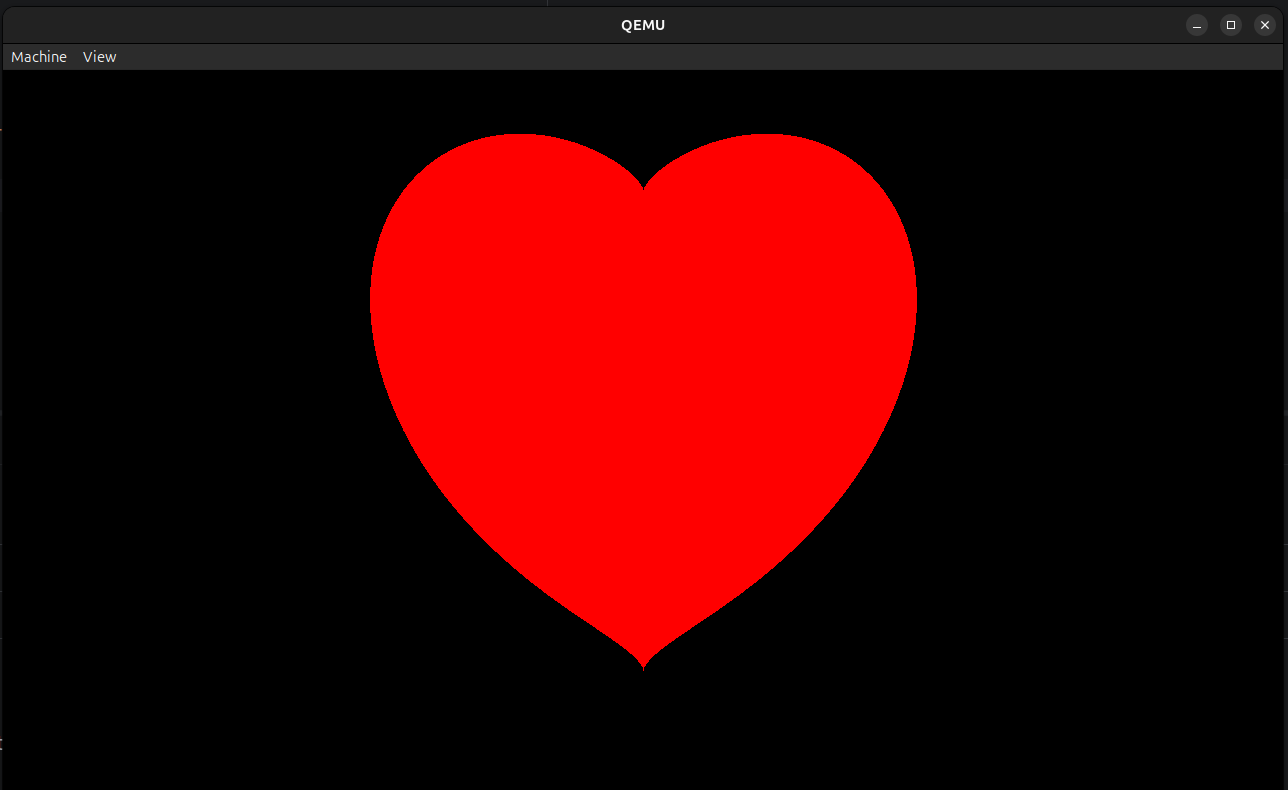

使用cargo run bios启动测试程序，顺利的话你可以在qemu虚拟机中看到一个爱心。
